提示信息HG140-45W半导体加热器使用于开关箱中预防产生凝露，防止温度降至零下或降至最低设定值
功率：0.045（kVA）
重量：0.3（kg） 用途：用于配电柜加热，除湿，保温，控温。
技术数据:
1、工作电压：110-240V AC/DC * (最少的110V, 最大265V)
2、发热设备：PTC 电阻器, 自行调控和温度限制
3、加热体：正极化铝制外壳
4、连接：3压力钳位为分股导线0.5-1.5mm. (与导线末端线代) 并且刚性导线0.5- 2.5mm.
5、连接外壳：塑料根据UL94 V-0, 黑
6、固定方式：截面为35mm DIN 路轨, EN 50022
7、贴合位置：垂直
8、操作/保持 温度：-45 至+70 .C (-49 至+158 .F)
9、保护类型/防护等级：IP20/I (接地)
10、认证：CE
工作电压在140V 之下AC/DC 大约减少热化表现10% 。
Semiconductor Heater
Pressure clamp connectors
Dynamic heating up
Wide voltage range
Temperature limiting
Energy saving
Clip fixing
Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.Operating voltage
120-240V AC/DC* (min. 110V, max. 265V)
Heating element
PTC resistor, self regulating and temperature limiting
Heater body
extruded aluminium profile, anodised
Connection
3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casing
plastic according to UL94 V-0, black
Mounting
clip for 35mm DIN rail, EN 50022
Fitting position
vertical
Operating/Storage temperature
-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class
IP20 / I (earthed)
Approvals
VDE + UL File No. E150057
Accessoires
screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

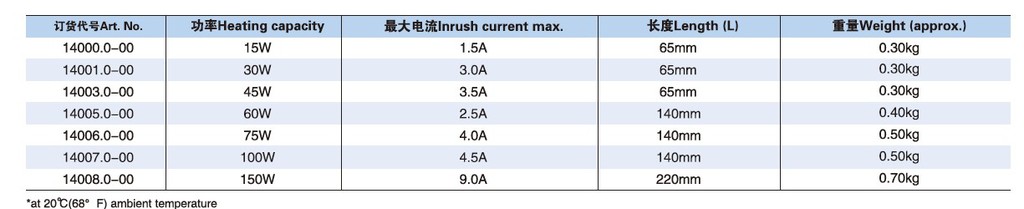

注：同类加热器型号功率不同，价格不同，有任何疑问电话咨询或留言!
