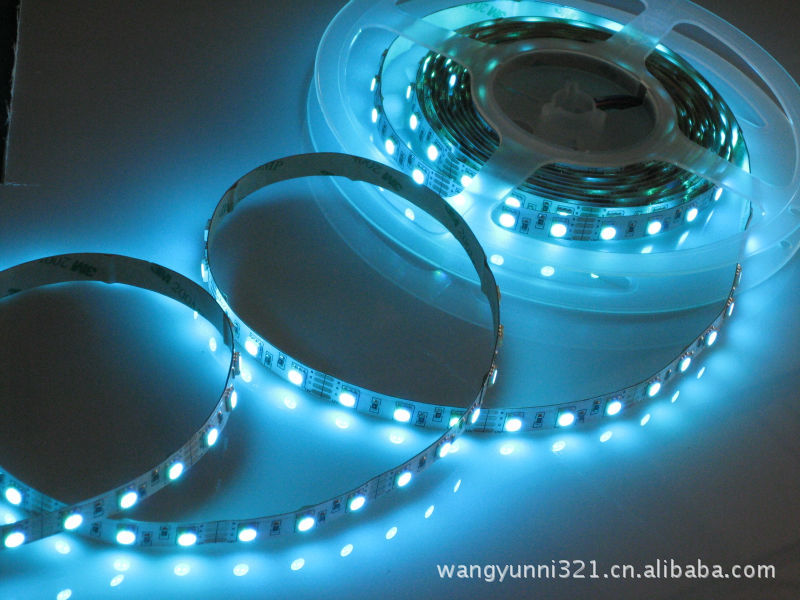

全国| 3528 SMD Strip Light | |||||||||||
| Waterproof E-Series | |||||||||||
| Applications | |||||||||||
| ◆Car decoration | |||||||||||
| ◆Architectural decorative lighting | |||||||||||
| ◆Archway,canopy and bridge edge lighting | |||||||||||
| ◆Auditorium walkway lighting | |||||||||||
| ◆Backlighting for signage letters | |||||||||||
| ◆Channel letter lighting | |||||||||||
| Product features: | |||||||||||
| ◆ Linear separ LED strip on flexible PCB with self-adhesive back 3LEDs agroup | |||||||||||
| ◆ Various angle 120degrees | |||||||||||
| ◆ Madeofleaded LEDs with lighting enitting in the direction of PCB | |||||||||||
| ◆ AvAIable colors:red green bule yellow white warmwhite | |||||||||||
| ◆ Work Voitage:DC12&24V | |||||||||||
| ◆ Professionally encapsulated to be waterproof Ip68 | |||||||||||
| ◆ Anti-Uv Design | |||||||||||
   | |||||||||||
| Notes: | |||||||||||
| ◆ All dimension units are millimeters | |||||||||||
| ◆ All dimension tolerance is +1mm unless otherwise noted | |||||||||||
| ◆ Electrical parameters as the standard 0.5M | |||||||||||
| Absolute Maximum Rating at TA=25℃ | |||||||||||
| Parameter | Symbol | Absolute Maximum Rating | Unit | ||||||||
| Forward Current | IF | 200 | mA | ||||||||
| Power Dissipation | PD | 2.4 | W | ||||||||
| Electrostatic discharge | ESD | 2000 | V | ||||||||
| Operating Temperature | Topr | -25 – 60 | ℃ | ||||||||
| Storage Temperature | Tstg | -40 – 80 | ℃ | ||||||||
| Electrical / Optical Characteristics at TA=25℃ | |||||||||||
| Parameter | Symbol | Condition | Typ | Unit | |||||||
| Forward Voltage DC | VF | IF=200mA | 12 | V | |||||||
| Dominant Wavelength | λD | IF=200mA | ~ | nm | |||||||
| Luminous flux | φV | IF=200mA | 100 | lm | |||||||
| Recommend Forward Current | IF(rec) | ~ | 200 | mA | |||||||
| Basic Technical Data | |||||||||||
| Part Number | Color | LED | Luminous (lm) | Viewing Angle | WaveLength | Current (mA) | Packing Means | ||||
| Qty | |||||||||||
| AFL-3528W | White | 30 | 90-110 | 120° | 6000-7000K | 180-200 | 5m/reel | ||||
| AFL-3528R | Red | 30 | 30-35 | 120° | 620-630nm | 180-200 | 5m/reel | ||||
| AFL-3528G | Green | 30 | 60-70 | 120° | 510-525nm | 180-200 | 5m/reel | ||||
| AFL-3528B | Bule | 30 | 20-25 | 120° | 455-470nm | 180-200 | 5m/reel | ||||
| AFL-3528Y | Yellow | 30 | 25-30 | 120° | 585-595nm | 180-200 | 5m/reel | ||||
| AFL-3528P | Purple | 30 | 15-20 | 120° | 400-410nm | 180-200 | 5m/reel | ||||
